Magnetic Separators
Ensure product purity and protect pumps
Sanitary grade magnetic separators for capturing and removing fine metal particles and contaminants (down to 2.54 microns 0.00254mm in size) from liquid or dry processing lines in the food, beverage, personal care, pharmaceutical and many other industries that demand the highest hygiene and performance standards.
Rare Earth Magnetic Separators
Use a rare earth hygienic magnetic separator in a wide range of processing lines from bulk solids to liquids.
With application-specific configurations, we offer an unlimited range of bespoke solutions that can be ordered as standard or tailored to your specific metal separation requirements.
Magnetic Traps
In-line magnetic traps for pumped liquids & slurries – suitable for ½” to 6″ lines
Magnetic Plates
Magnetic plates to locate above or below conveyors for wet or dry products
Magnetic Bullets
Magnetic separators for pneumatic or gravity-fed dry, free-flowing products
Magnetic Grates
Grate magnets for mechanical or gravity-fed processing systems on wet or dry products
Magnetic Ducts
Magnetic ducts for gravity-fed or mechanically-fed wet or dry products
Gaussmeter
Digital gaussmeters for quick and accurate measurement of the magnetic strength of any magnet or magnetic circuit
Cesco Magnetic Separators
Cesco Magnetics has more than 70 years experience designing and manufacturing standard and custom magnetic separators for a wide variety of processing lines from bulk solids to liquids.
Call BestPump on +44 (0) 1236 433 799 and speak to our hygienic process specialists.
Monitor magnet strength for Compliance
The Cesco GA40 Digital Gaussmeter allows anyone to quickly and accurately measure the magnetic strength of any magnet or magnetic circuit.
Our gauss measurement kit includes a digital gaussmeter capable of measuring any permanent magnet field, 48” flexible probe, a package of magnetic viewing paper and easy to read instruction manual making HACCP compliance or on line magnetic separator analysis a “snap”.
What can a hygienic magnetic separator capture?
Metal trash and fines, including work-hardened stainless steel as small as 0.0001 inches are captured by powerful, rare-earth, neodymium magnets and held in-place until cleaned.

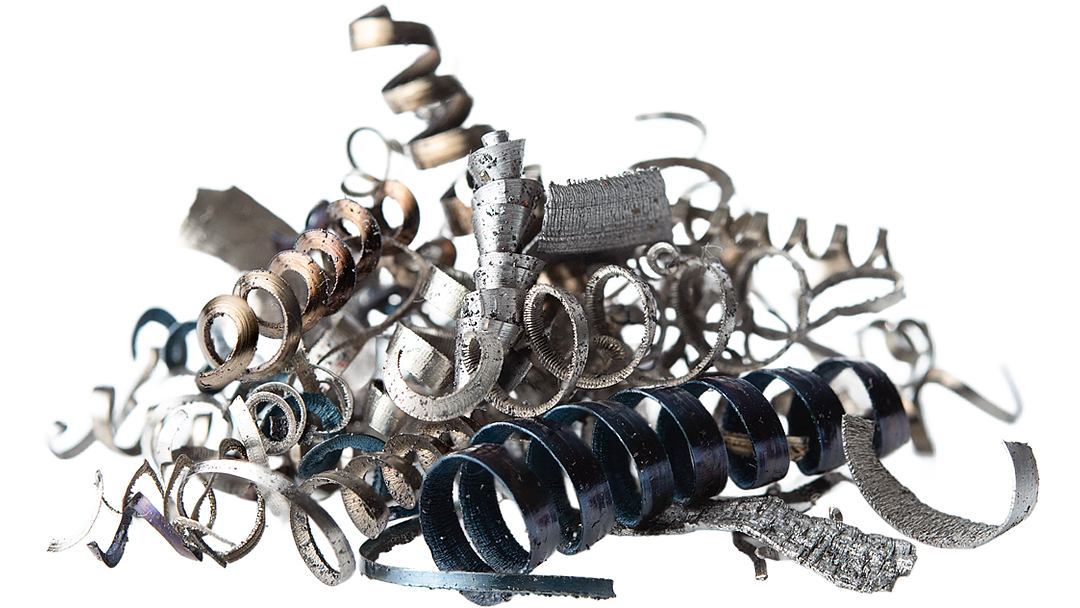

The metal fines that could enter your products can potentially originate from many different sources.
For example, nickel plating on cast iron machinery can peel or chip, stainless steel can be sheared, abraded, cut or torn off mixer blades, kettle sides, pump parts or cutter blades.
All of these metallic particles can be successfully captured and safely removed by placing Cesco Magnetics’ units in your production lines.
Our units have the ability to capture fine particles of iron, nickel, cobalt and stainless-steel grades 304, 316, 410, 420 and 430 work-hardened shear.
Magnetic separation efficiency is dependent on several factors including strength and gradient of the magnetic field, size and composition of the metal trash, distance between the trash and the magnet, viscosity of the product and the rate of product flow.
