Compatible Spare Parts for Waukesha Pumps 006U1
006U1 Spare Parts | Compatible with Waukesha® 006U1 Pumps
Need Spare Parts for a Waukesha® Universal 006-U1 Pump? Get Guaranteed Interchangeable Alternatives with Fast UK & European Delivery.
Can’t find the part number you need? Call us on +44 (0)1236 433799 for expert, friendly support.

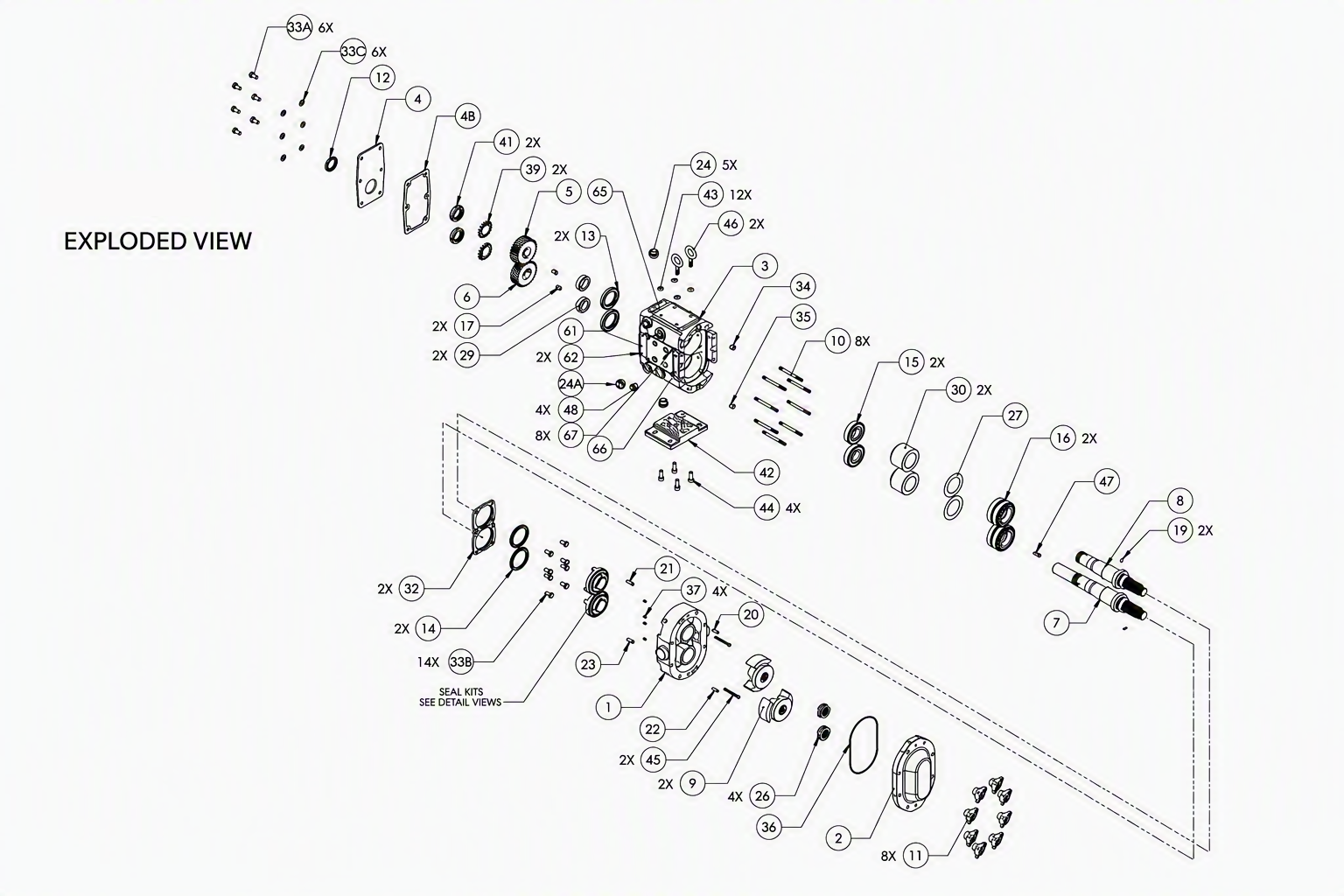

| Item | Description | Quantity Per Pump | Reference | Part Number | Part Number |
|---|---|---|---|---|---|
| 5 | Gear Drive Shaft | 1 | 015007001 | ||
| 6 | Gear Short Shaft | 1 | 015007002 | ||
| 7 | Drive Shaft | 1 | 114642 | ||
| 8 | Short Shaft | 1 | 114643 | ||
| 9 | Rotor Twin Blade Alloy | 2 | 006010000 | ||
| 12 | Oil Seal, Gear Case Cover | 1 | 000030016 | ||
| 13 | Oil Seal, Gear Case Rear | 2 | 000030017 | ||
| 14 | Grease Seal Front Bearing Retainer | 2 | 121679 | ||
| 15 | Rear Bearing | 2 | 015035000 | ||
| 16 | Front Bearing | 2 | 101714 | ||
| 17 | Gear Key | 2 | 015037000 | ||
| 26 | Rotor Jam Nut | 4 | AD0052001 | ||
| 27 | Shim Kit | 2 | 117889 | ||
| 29 | Gear to rear Bearing Spacer | 2 | 015055000 | ||
| 30 | Bearing Spacer | 2 | 101814 | ||
| 36 | Cover O-ring (Viton / FKM) | 1 | V70252 | ||
| 39 | Gear Lockwasher | 2 | STD136005 | ||
| 41 | Gear Locknut | 2 | STD236005 | ||
| 81 | O-ring Body (Viton / FKM) | 2 | AD0079V00 | ||
| 82 | O-ring Shaft (Viton / FKM) | 2 | V70022 | ||
| 83 | Zirconia Sleeve | 2 | 015098004 | ||
| 84 | O-ring Seal Carrier | 2 | 015034002 | I-QP1-015034001 | |
| 85 | O-ring Outer Seal (Viton / FKM) | 2 | V50228 | ||
| 86 | Seal Seat (Silicon Carbide) | 2 | 015014009 | ||
| 87 | Seal Inner (Silicon Carbide) | 2 | 015306009 | ||
| 88 | Inner Wave Spring | 2 | 015304000 | ||
| 89 | Outer Seal (Carbon) | 2 | 015206007 |
